2 in 1 Optical Switch 5V Latching

Name: 2 in 1 Optical Switch 5V Latching
Brand: GEZHI or OEM
Price: 1 USD

Brand Name : GEZHI or OEM

Model Number : GZ-FSW-1x2

Certification : CE/RoHS/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : T/T, Paypal,Western Union

Supply Ability : 50,000pcs per month

Delivery Time : 5-8 work days

Packaging Details : Plastic box

Product Name : Optical Switch

Type : Latching

Connector : FC/APC

Length : 1meter

Fiber : 900um loose tube

Voltage : 5V

Contact Now

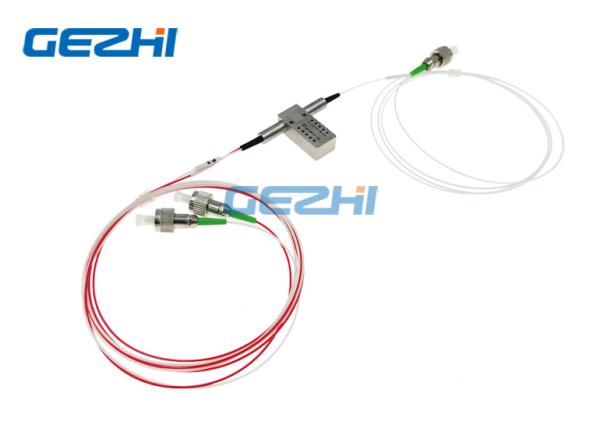

2 in 1 Optical Switch 5V Latching

GEZHI 2 in 1 Optical Switch 5V Latching Components. It maintains full redundancy back up function by receiving, monitoring and controlling the optical input signals. The2 in 1 Optical Switch 5V Latching Components enables optical signals to be selectively switched from the primary optical source to a secondary optical source when the primary source goes a specified optical power.

Features	Applications
Low insertion Loss High Channel Isolation Unmatched Low Cost High Stability, High Reliability Epoxy-free on Optical Path Latching or Non-latching	Optical Network Protection/Restoration Transmitter and receiver protection Network Test System Optical Singnal Routing Configurable Optical Add/Drop

2 in 1 Optical Switch 5V Latching Specification

Model	/	Value
Operating wavelength	nm	1260~1620
wavelength	nm	1310&1550
Insertion loss	dB	Typ:0.5 Max:1.0
Return loss	dB	SM≥50
Cross talk	dB	SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Voltage	v	3.0 or 5.0 (+/-0.5)
Operating life	Time	≥10⁷
Switch time	ms	≤8
Power handling	mW	≤500
Operating temperature	℃	-20~+70
Storage temperature	℃	-40~+85
Size	mm	27.0×12.6×8.0

2 in 1 Optical Switch 5V Latching PIN

Type	Pin	Electric Drive				Status sensor
1×2	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	--	--	GND	V+	Close	Open	Open	Close
Latching	P1-P3	V+	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P2	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P3	V+	--	--	GND	Open	Close	Close	Open

2 in 1 Optical Switch 5V Latching Optical Route

Status One

Status Two
